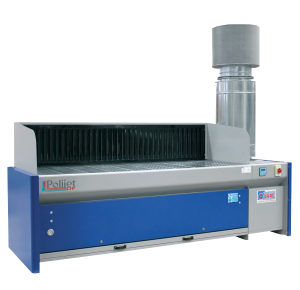

CORAL Polijet DF nutraukimo stalai su keičiamais filtrais.
STANDARTIŠKAI
- Suction top made of galvanised sheet metal
PASIRINKTINAI
- Suction top felt layer
- Suction top Polypropylene layer
- Bench top extension without suction
- Air diffuser
- Fixed sides
- Silencer
- Suction wall light kit
- Automatic fire extinguisher with control board
- Total painting
Specifikacija | Coral Polijet df 1500 | Coral Polijet df 2000 | Coral Polijet df 2500 |
---|---|---|---|
Oro našumas | m³/h 3800 – c.f.m 2250 | m³/h 4800 – c.f.m 2850 | m³/h 5800 – c.f.m 3400 |
Galia | 2,2 kW | 3 kW | 4 kW |
Voltažas | 230/400 V 3ph 50 Hz | 230/400 V 3ph 50 Hz | 230/400 V 3ph 50 Hz |
Apsukos per min. | 2900 | 2900 | 2900 |
Kartridžų skaičius | 3 | 5 | 6 |
Filtruojamas paviršius | 33 m² | 55 m² | 66 m² |
IFA/BGIA reitingas | M-PES-TF * Ø 325 H 660 mm | M-PES-TF * Ø 325 H 660 mm | M-PES-TF * Ø 325 H 660 mm |
Valymo sistema | Pneumatic with automatic control | Pneumatic with automatic control | Pneumatic with automatic control |
Matmenys | 2193 x 1118 x 1411 mm | 2693 x 1118 x 1411 mm | 3193 x 1118 x 1411 mm |
Svoris | 400 kg | 490 kg | 580 kg |
Pasiskirstęs svoris | 250 kg/m² | 250 kg/m² | 250 kg/m² |
Naudingas paviršius | 1,3 m² | 1,7 m² | 2,1 m² |
